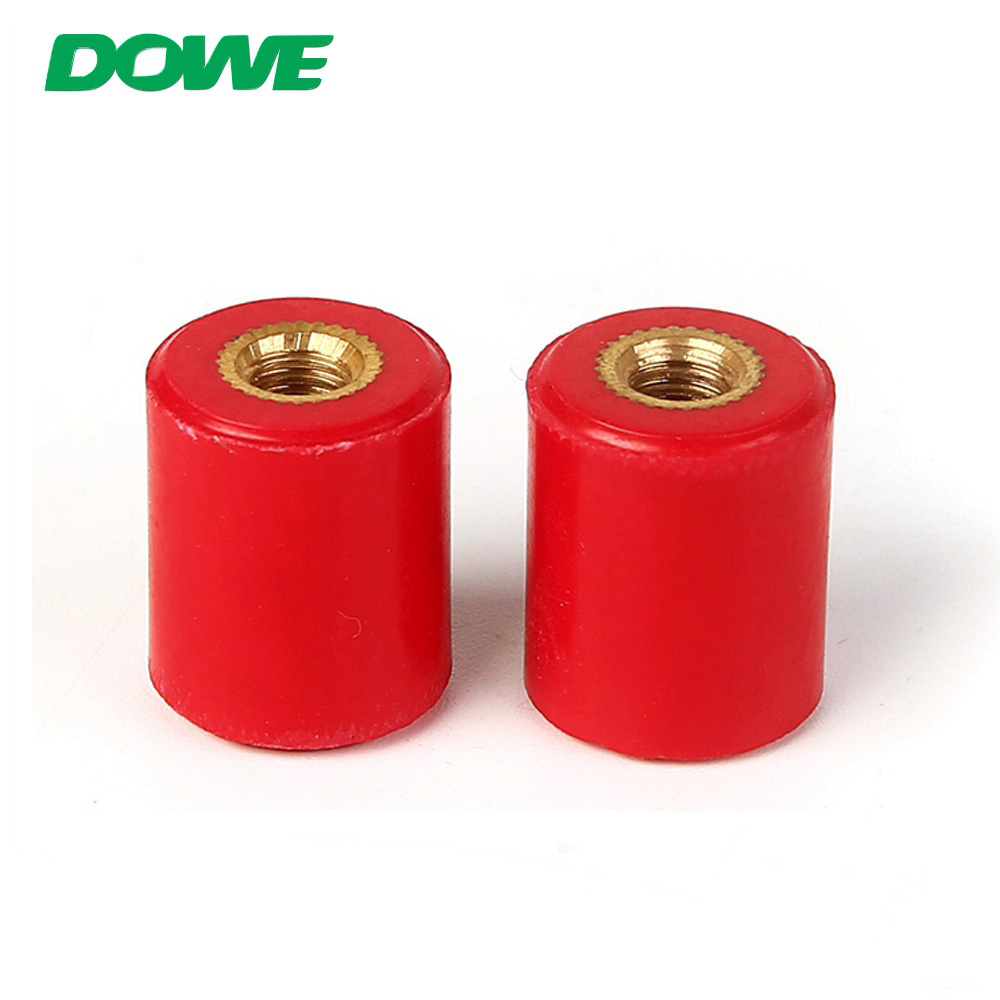

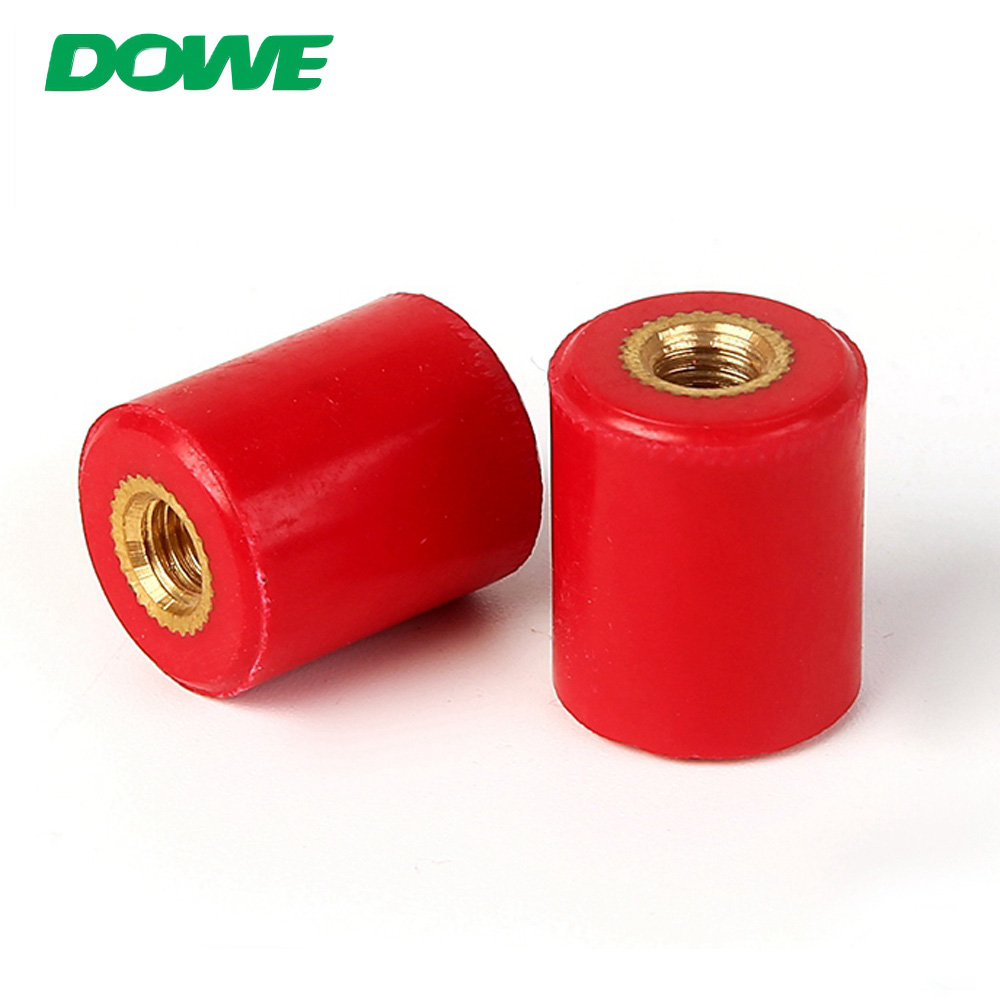

MNS busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for cylindrical insulator.
Model：MNS
Screw：M6/M8/M10/M12/M14/M16
Material：DMC,BMC
Voltage：660V-4500V
Fire Rating：UL94-V0
Certificate：CE,REACH,ROHS
Type：Terminal
Customized：Yes
Purpose：Support connecting bus
| Model | Diameter(mm) | Height(mm) | Screw | Customized |
| MNS1615 | 16 | 15 | M5/M6 | According customer's requirement |
| MNS1620 | 16 | 20 | M5/M6 | |
| MNS1625 | 16 | 25 | M5/M6/M8 | |
| MNS1630 | 16 | 30 | M5/M6/M8 | |
| MNS1635 | 16 | 35 | M5/M6/M8 | |
| MNS1640 | 16 | 40 | M5/M6/M8 | |
| MNS2020 | 20 | 20 | M5/M6/M8 | |
| MNS2025 | 20 | 25 | M5/M6/M8 | |
| MNS2030 | 20 | 30 | M5/M6/M8 | |
| MNS2035 | 20 | 35 | M5/M6/M8 | |
| MNS2040 | 20 | 40 | M5/M6/M8 | |
| MNS2525 | 25 | 25 | M6/M8 | |
| MNS2530 | 25 | 30 | M6/M8 | |
| MNS2540 | 25 | 40 | M6/M8 | |
| MNS2550 | 25 | 50 | M6/M8 | |
| MNS3030 | 30 | 30 | M6/M8/M10 | |
| MNS3040 | 30 | 40 | M6/M8/M10 | |
| MNS3050 | 30 | 50 | M6/M8/M10 | |
| MNS3060 | 30 | 60 | M6/M8/M10 | |
| MNS4040 | 40 | 40 | M8/M10 | |
| MNS4050 | 40 | 50 | M8/M10 | |
| MNS4060 | 40 | 60 | M8/M10 | |
| MNS4070 | 40 | 70 | M8/M10 | |
| MNS4080 | 40 | 80 | M8/M10 | |
| MNS5040 | 50 | 40 | M8/M10/M12 | |
| MNS5050 | 50 | 50 | M8/M10/M12 | |
| MNS5060 | 50 | 60 | M8/M10/M12 | |
| MNS5070 | 50 | 70 | M8/M10/M12 | |
| MNS5080 | 50 | 80 | M8/M10/M12 | |
| MNS6040 | 60 | 40 | M8/M10/M12 | |
| MNS6050 | 60 | 50 | M8/M10/M12 | |
| MNS6060 | 60 | 60 | M8/M10/M12 | |
| MNS6070 | 60 | 70 | M8/M10/M12 | |
| MNS6080 | 60 | 80 | M8/M10/M12 |
